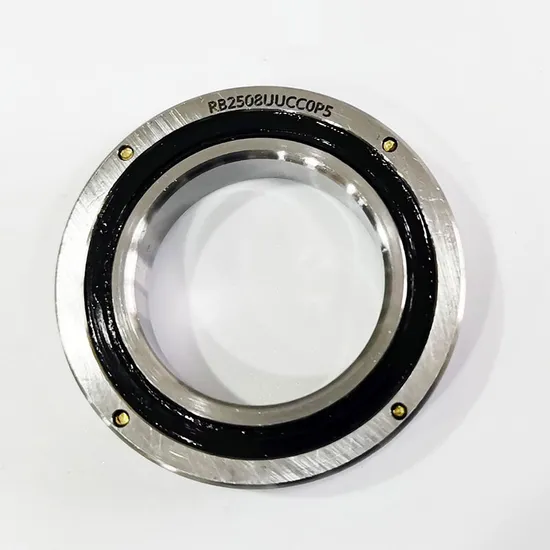

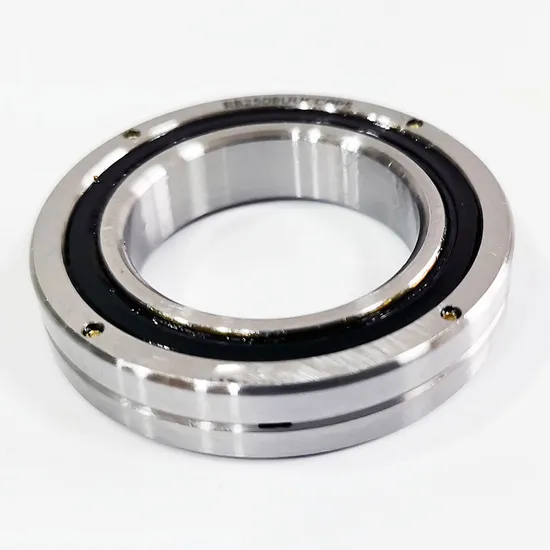

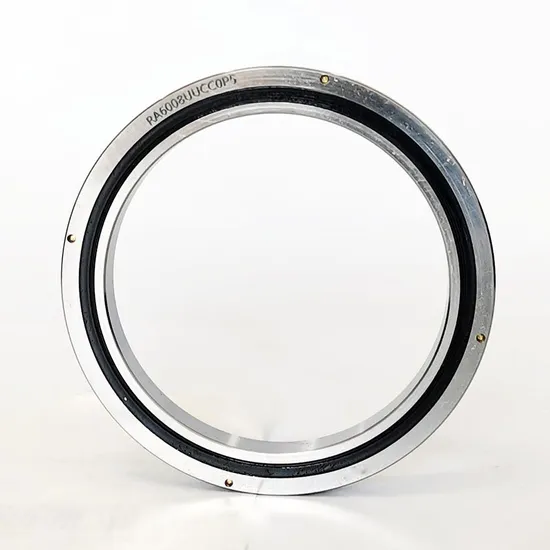

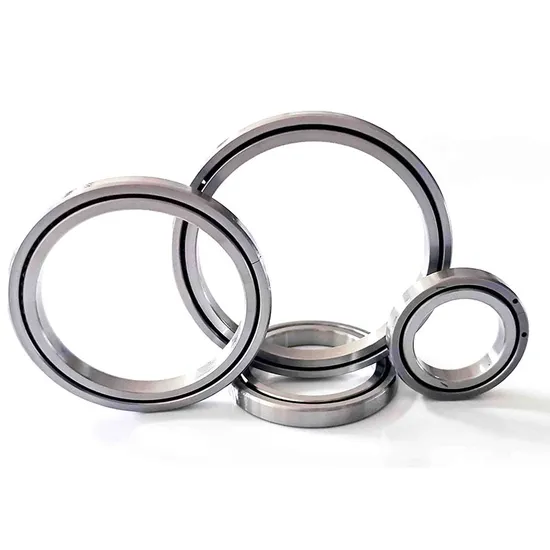

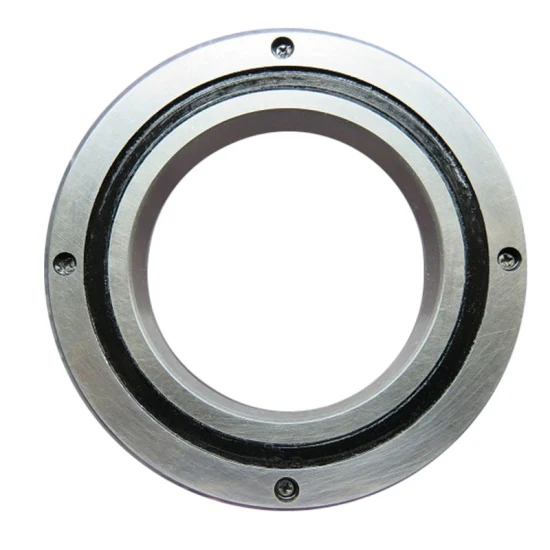

Engineered for high-rigidity and compact applications, this crossed roller slewing ring provides superior rotational accuracy for industrial turntables and robotics.
Features a 90° V-groove design with cylindrical rollers arranged perpendicularly to handle complex radial, axial, and moment loads simultaneously.
The integrated inner/outer ring structure minimizes installation impact, ensuring stable performance and high rotational accuracy.
Its compact and lightweight design is optimal for space-constrained applications, such as joints in industrial robots and manipulators.
Achieves significantly higher rigidity compared to traditional bearings, making it ideal for precision machining centers and medical equipment.
Constructed from high-carbon chromium bearing steel (GCr15) for exceptional durability and load-bearing capacity in demanding environments.
Customizable configurations, including seal types and precision levels (P4, P5), are available to meet specific operational requirements.
Model: SX011832
Structure: Crossed Cylindrical Roller
Material: Gcr15 / Carbon Steel
Inner Diameter (d): 160mm
Outer Diameter (D): 200mm
Width (B): 20mm
Static Load Rating (Coa): 275 kN
Dynamic Load Rating (Ca): 69 kN
Quality Standard: ISO 9001:2000
